Asco 8317/8321 Series Quick Exhaust Solenoid Valve 1/4" And 3/8" NPT

Name: Asco 83178321 Series Quick Exhaust Solenoid Valve 14quot And 38quot NPT
Brand: ASCO
Price: 418 USD

Asco 8317/8321 Series Quick Exhaust Solenoid Valve 1/4" And 3/8" NPT Manufactures

Brand Name : ASCO

Model Number : 8317 Series

Place of Origin : china

MOQ : 1

Price : $418

Payment Terms : T/T

Supply Ability : >100

Packaging Details : each

Valve Actuation : Solenoid - Air Pilot

Body Material : Brass, Stainless Steel

Media : Air, Inert Gas, Light Oil, Water

Pipe / Port Size : 1/4 "; 3/8 "

Port Type : NPTF

Function : 3 way - 3/2 Normally Closed, 3 way - 3/2 Normally Open

FlowFrom : From 0.1 Cv to 0.5 Cv, From 0.5 Cv to 1.0 Cv, From 1.0 Cv to 2.0 Cv, From .2 to .43 Kv, From .43 to .86 Kv, From .86 to 1.73 Kv

Voltage : 24 AC, 110 AC, 480 AC, 6 DC, 12 DC, 24 DC, 48 DC, 120 DC, 240 DC, 12 to 24 DC Voltage Ranging, 24 to 120 AC/DC Voltage Ranging, 100 to 240 AC/DC Voltage Ranging, 125 DC Battery Charging | 50, 50/60, 60

Operating Environment : Hazardous, Indoor, Outdoor

Standards / Regulations : Type 1, Type 2, Type 3, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9, UL, ATEX Zone 0-20, Class I Div 1, Class I Div 2, CSA, IEC Ex Zone 0-20

Max Differential / Max Operating Pressure : Vacuum to 150 PSIG, 150-500 PSIG

Contact Now

Asco-8317/8321 Series Quick Exhaust Solenoid Valve Pilot, Brass/Stainless Steel Body 1/4" And 3/8" NPT

Product Description

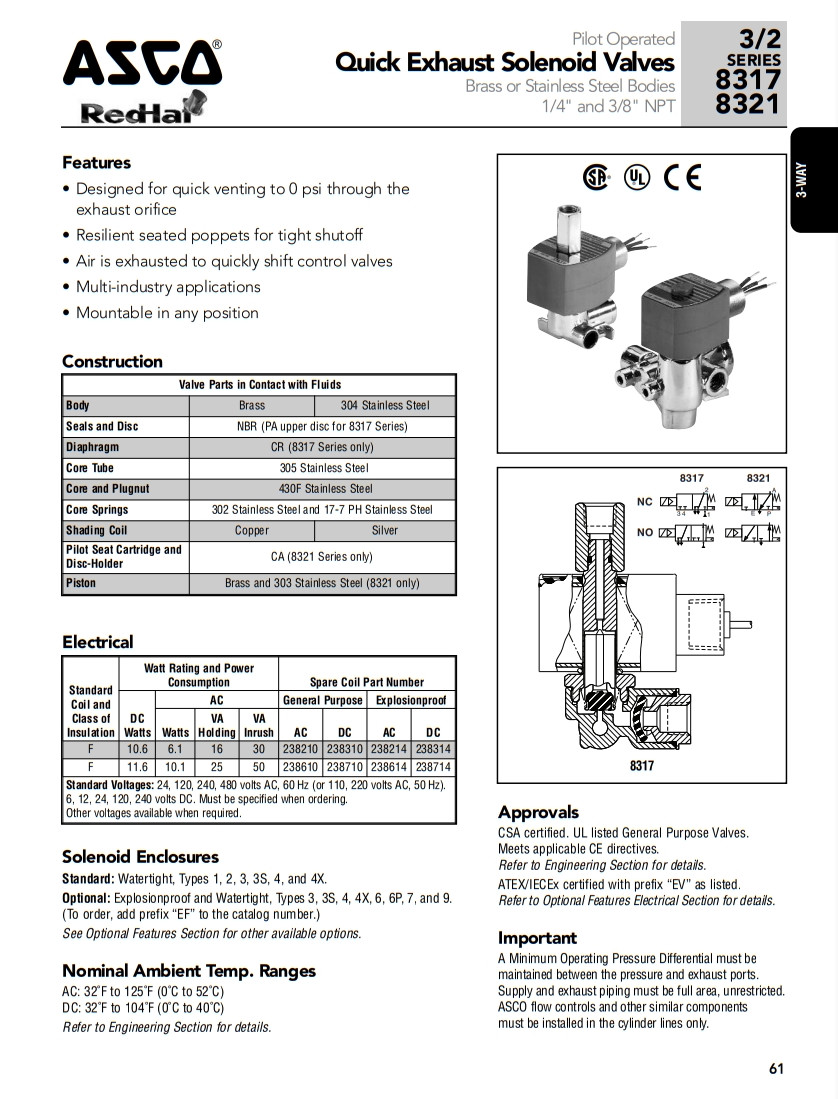

The ASCO Series 321, also known as 8321, quick-exhaust solenoid valves are designed for quick venting to 0 psi through their external orifice. Air is exhausted to rapidly shift control valves. The pilot-operated valves have resilient seated poppets for tight shutoff. They are well suited for refining, chemical, and food and beverage applications that require a quick-exhaust valve.

Product Features

• RedHat Next Generation version uses electronics technology to manage power, providing less energy consumption and enhanced pressure and flow ratings
• Low-power model has one-piece solenoid with highly efficient solenoid cartridge and special low-wattage coil. Designed for automotive

•Resilient seated poppets for tight shutoff

•Mountable in any position for easy installatio

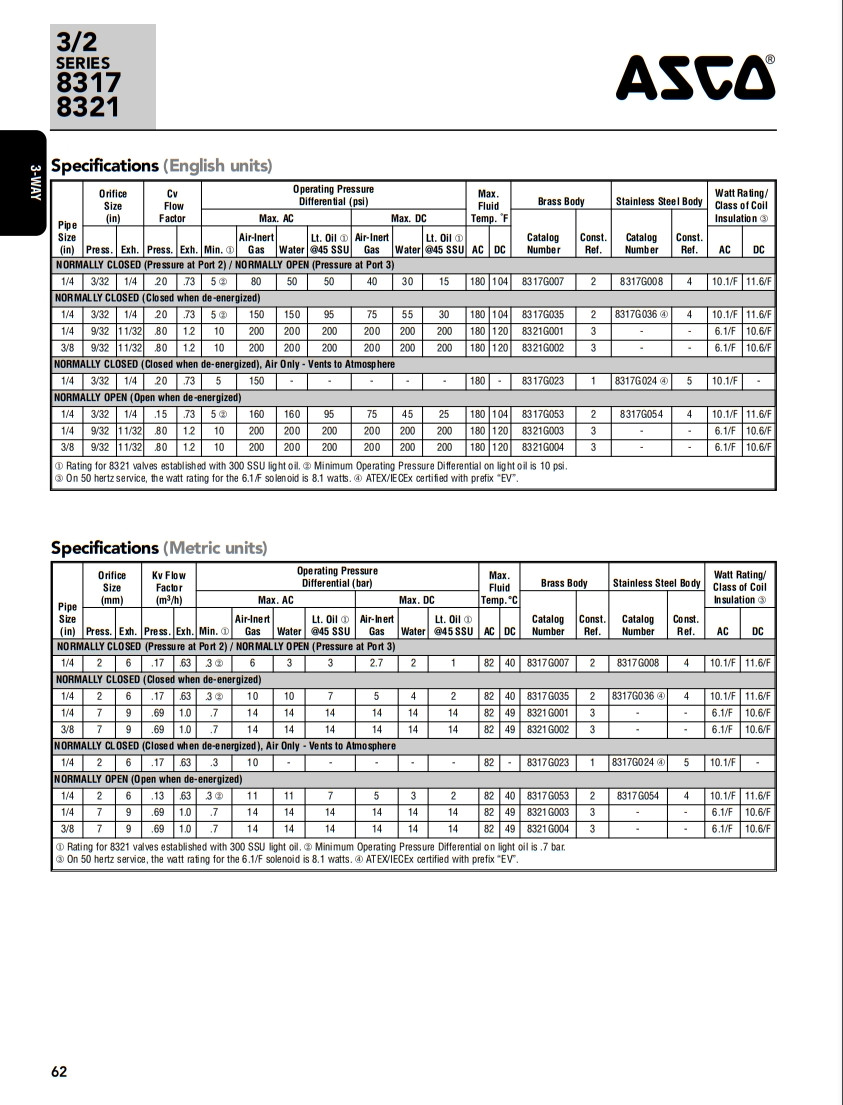

Specifications

Valve Actuation	Solenoid - Air Pilot
Body Material	Brass, Stainless Steel
Media	Air, Inert Gas, Light Oil, Water
Pipe / Port Size	1/4 "; 3/8 "
Port Type	NPTF
Function	3 way - 3/2 Normally Closed, 3 way - 3/2 Normally Open
Flow	From.05 - 1 Cv, From 0.1 Cv to 0.5 Cv, From.43 to.86 Kv, From.86 to 1.73 Kv
Voltage	100 to 240 AC/DC Voltage Ranging, 12 to 24 DC Voltage Ranging, 125 DC Battery Charging, 110 AC, 12 DC, 120 AC, 120 DC, 24 AC, 24 DC, 24 to 120 AC/DC Voltage Ranging, 240 DC, 250 DC Battery Charging50, 50/60, 60
Operating Environment	Corrosive, Indoor, Outdoor
Standards / Regulations	ATEX Zone 1 - 21, ATEX Zone 2 - 22, CSA, IEC Ex Zone 1 - 21, SIL, Type 1, Type 2, Type 3, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9, UL
Standards / Regulations	ATEX Zone 1 - 21, ATEX Zone 2 - 22, CSA, IEC Ex Zone 1 - 21, SIL, Type 1, Type 2, Type 3, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9, UL

Product Details

Asco 8317/8321 Series Quick Exhaust Solenoid Valve 1/4" And 3/8" NPT

Product Tags:

Asco 8317 Quick Exhaust Solenoid Valve

3/8" NPT 2 Position 3 Way Solenoid Valve

Asco 8317/8321 Series Quick Exhaust Solenoid Valve 1/4" And 3/8" NPT Images
