ASCO T290 Air Control Angle Seat Valve Anti Waterhammer For Food And Beverage Industry

  • 1
  • 2

Brand Name : ASCO

Model Number : ASCO™ 290 Angle-Body Piston Valve

Place of Origin : china

MOQ : 2

Price : $400

Payment Terms : T/T

Supply Ability : >100

Valve Actuation : Motorized, Pneumatic - Air Pilot

Body Material : Bronze, Stainless Steel

Media : Aggressive Liquids/Gases, Air, Inert Gas, Fuel Oil, Hot Water, Light Oil, Oxygen, Steam, Water

Pipe / Port Size : 1/2 "; 3/8 "; 3/4 "; 1 "; 1 1/4 "; 1 1/2 "; 2 "; 2 1/2 "

Port Type : G ISO228/1-G BSPP, NPTF

Function : 2 way - 2/2 Normally Closed, 2 way - 2/2 Normally Open

Flow : From 2.0 Cv to 6.0 Cv, From 6.0 Cv to 14.0 Cv, Over 14.0 Cv

Operating Environment : Indoor, Outdoor

Standards / Regulations : RoHS, Type 4, Type 4X

Contact Now

ASCO T290 Air Control Valve Series Angle Seat Valve Suitable For General Service Applications Plus Steam, Hot Water, And Auxiliary F Fluids Within The Food And Beverage Industry

Product Description

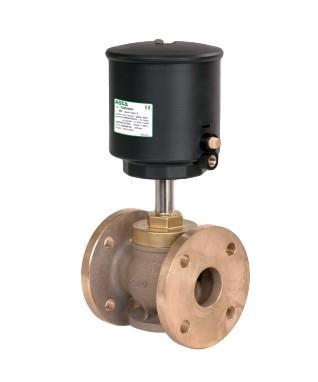

The ASCO Series 290, also known as 8290, is a pressure-operated, direct acting angle-body piston solenoid valve built for demanding applications. Its straight-through body design is available in bronze or stainless steel. The valve is suitable for general service applications (air, inert gas, water, oil, and light slurries), plus steam, hot water, and auxiliary fluids within the food and beverage industry. Many optional features available including a visual/electrical position indicator or a stroke limiter.

Product Features
• Remote-controlled valves with disc for industrial fl uids
• Anti-waterhammer design (fl uid entry under the disc)
• Vacuum operation up to 10-2 mbar
• Wide range of piston-type operators (63 - 90 -125 mm dia.) rotatable through
360°, for maximum performance at different minimum pilot pressures
• High performance, maintenance-free stuffi ng box
• The valves satisfy Pressure Equipment Directive 97/23/EC, category 1 (DN > 25)

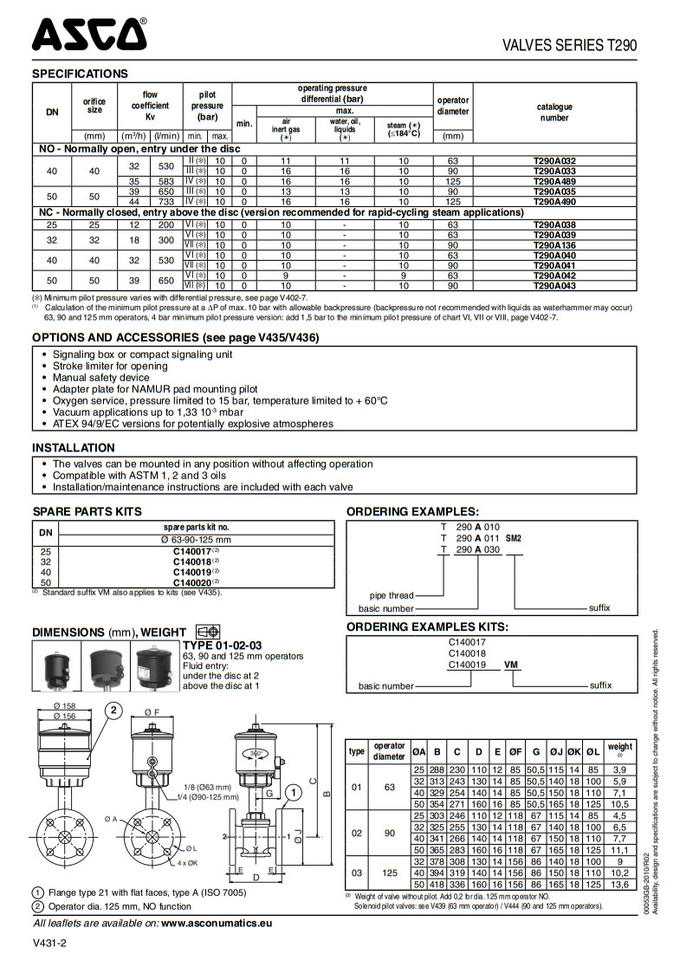

Specifications

Valve Actuation

Motorized, Pneumatic - Air Pilot

Body Material

Bronze, Stainless Steel

Media

Aggressive Liquids/Gases, Air, Inert Gas, Fuel Oil, Hot Water, Light Oil, Oxygen, Steam, Water

Pipe / Port Size

1/2 "; 3/8 "; 3/4 "; 1 "; 1 1/4 "; 1 1/2 "; 2 "; 2 1/2 "

Port Type

NPTF

Function

2 way - 2/2 Normally Closed, 2 way - 2/2 Normally Open

Flow

From 2.0 Cv to 6.0 Cv, From 6.0 Cv to 14.0 Cv, Over 14.0 Cv

Operating Environment

Indoor, Outdoor

Standards / Regulations

RoHS, Type 4, Type 4X

Product Details

ASCO T290 Air Control Angle Seat Valve Anti Waterhammer For Food And Beverage IndustryASCO T290 Air Control Angle Seat Valve Anti Waterhammer For Food And Beverage Industry
