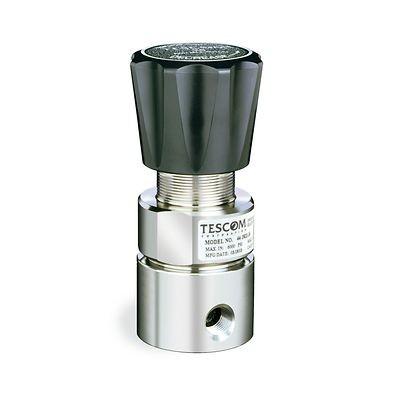

TESCOM 44-1700 Series Back Pressure Regulator High Pressure For Industrial Efficiency

Name: TESCOM 441700 Series Back Pressure Regulator High Pressure For Industrial Efficiency
Brand: TESCOM
Price: 130 USD

Brand Name : TESCOM

Model Number : 44-4700 series

Place of Origin : china

MOQ : 1

Price : $130

Payment Terms : T/T, T/T

Supply Ability : >100

Flow Capacity : Up to 1000 SCFM

Features : High flow capacity, compact design

Pressure Range : 0-5000 psig

Valve Type : Needle Valve

Temperature Range : -40 to 165°F

Material : Stainless Steel

Outlet Pressure Range : 0-500 psig

Maximum Inlet Pressure : 5000 psig

Certifications : CE, ATEX, CRN

Outlet Connection : 1/4

Body Type : Single Stage

Inlet Connection : 1/4

Contact Now

TESCOM 44-1700 Series Back Pressure Regulator High Pressure Control For Industrial Efficiency

Product introduction:

The TESCOM 44-1700 series compact back pressure regulator is engineered to deliver precise pressure control up to 800 psig (55.2 bar), making it ideal for hydraulic and pneumatic systems in industrial equipment. Its versatile design balances performance, durability, and space efficiency, ensuring optimal operation in demanding environments.

Key Features:

High-Pressure Handling: Maintains stable back pressure up to 800 psig (55.2 bar) for critical applications like pump protection and process stabilization.
Compact Design: Lightweight and space-saving, enabling easy integration into confined spaces without compromising performance.
Corrosion Resistance: Constructed with 316 stainless steel and Hastelloy® components for longevity in aggressive media.
Adjustable Pressure Ranges: Supports outlet pressures from 0–150 psig (0–10.3 bar) to 0–800 psig (0–55.2 bar), tailoring to specific needs.

Technical Advantages:

Materials: 316 stainless steel body, Hastelloy® diaphragm, and Teflon®/Vespel® seals for chemical resistance.
Temperature Range: Operates from -40°C to 74°C (-40°F to 165°F) with optional high-temperature variants.
Port Options: SAE, NPTF, and MS33649 connections in 1/4" to 1/2" sizes for flexible installations.

Applications:

Hydraulic Testing: Maintains consistent pressure in test benches and machinery.
Pneumatic Systems: Controls air/gas pressure in automation and manufacturing.
Chemical Processing: Handles corrosive fluids in refining and petrochemical plants.
Oil & Gas: Manages back pressure in pipelines and wellhead operations.

Why Choose 44-1700?

Reliability: Minimizes pressure fluctuations for stable system performance.
Safety: UL-rated low leakage (<10⁻⁷ mbar·L/s helium) for hazardous gases.
Cost-Effective: Reduces maintenance with field-replaceable components.

specification :

Parameter	Value
Pressure Control	- Inlet Pressure: Up to 800 psig/55.2 bar (stable input for harsh conditions) - Adjustable Pressure Ranges: - 40–150 psig (2.8–10.3 bar) - 40–300 psig (2.8–20.7 bar) - 100–700 psig (6.9–48.3 bar) - 100–800 psig (6.9–55.2 bar)
High-Quality Materials	- Body: 316 stainless steel or brass (corrosion/high-temperature resistant) - Valve Seat: CTFE (superior sealing) - O-Ring: Viton (oil/chemical resistant) - Support Ring: Teflon (low friction, high wear resistance) - Other Parts: 316 stainless steel (stainless version) or brass + 300 series stainless steel (brass version)
Wide Applicability	- Operating Temperature: -26°C to 60°C / -15°F to 140°F - Port Size/Type: 1/4" NPTF (standard interface for easy system integration) - Flow Capacity: Cv=0.10 (fast flow, reduced pressure loss)
Lightweight & Portable Design	- Weight: 0.9 kg / 2 lb (easy to carry and install, minimizes labor intensity)

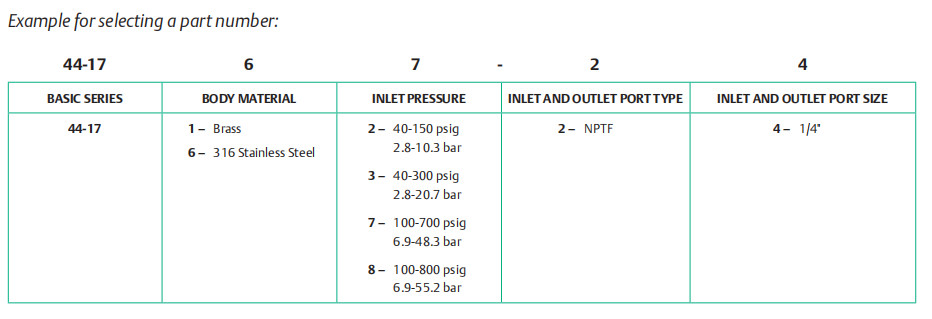

44-1700 series TESCOM compact back pressure regulator selection reference

TESCOM 44-1700 Series Back Pressure Regulator High Pressure For Industrial Efficiency
