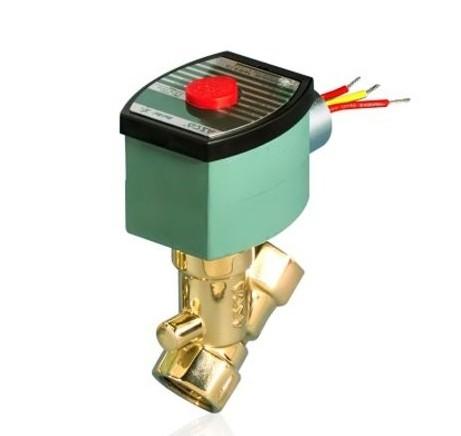

8030 Series ASCO 2 Position 2 Way Solenoid Valve Normally Open Version For Gas Venting

Name: 8030 Series ASCO 2 Position 2 Way Solenoid Valve Normally Open Version For Gas Venting
Brand: ASCO
Price: 320 USD

Brand Name : ASCO

Model Number : ASCO Series 8030

Place of Origin : china

MOQ : 2

Price : $320

Payment Terms : T/T

Supply Ability : >100

Valve Actuation : Solenoid

Body Material : Brass, Stainless Steel

Media : Air, Inert Gas, Light Oil, Water

Pipe / Port Size : 1/2 "; 3/8 "; 3/4 "

Port Type : NPTF

Function : 2 way - 2/2 Normally Closed, 2 way - 2/2 Normally Open

Flow : From 2.0 Cv to 6.0 Cv, From 6.0 Cv to 14.0 Cv

Voltage : 24 AC, 110 AC, 120 AC, 220 AC, 230 AC, 480 AC, 6 DC, 12 DC, 24 DC, 120 DC, 240 DC | 50/60

Operating Environment : Indoor, Outdoor

Standards / Regulations : CSA, FM, UL

Max Differential / Max Operating Pressure : Vacuum to 150 PSIG

Contact Now

2 Position 2 Way -8030 Series ASCO Solenoid Valve Widely Used For Dispensing, Collating, Vacuum Holding, Tank Draining And Gas Shutoff Applications Normally Open Version Well Suited For Gas Venting

Product Description

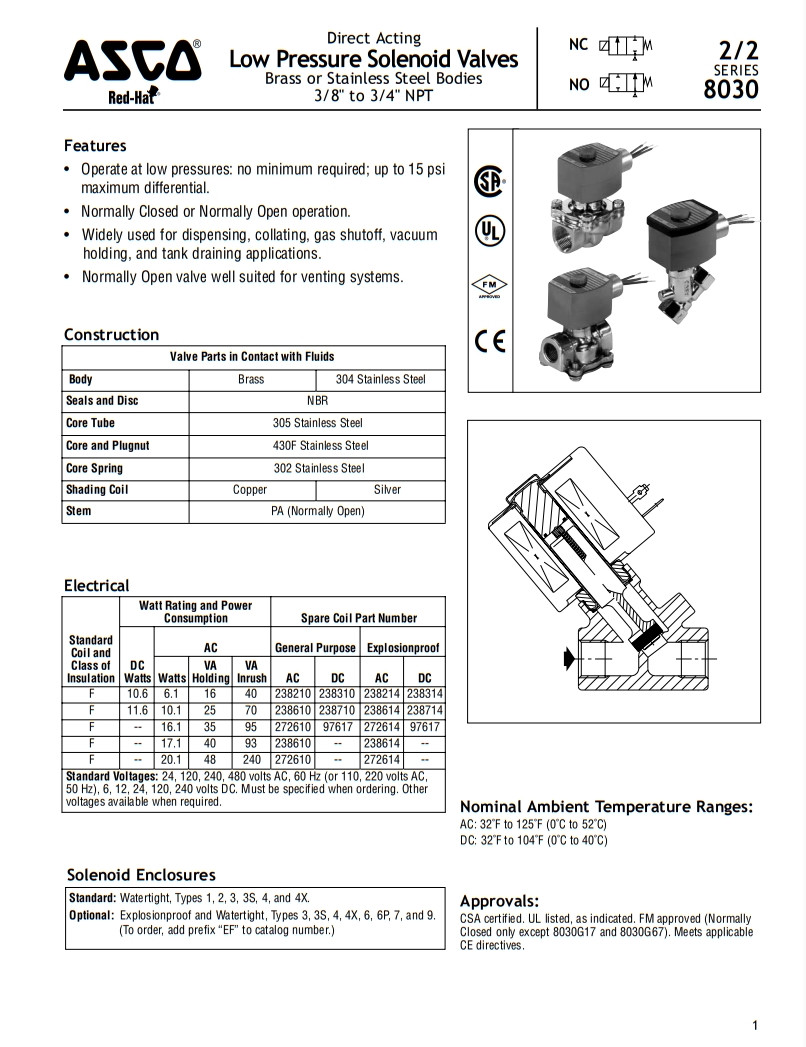

The ASCO Series 030, or 8030, is a direct - acting solenoid valve designed for low - pressure use, with a maximum differential pressure of up to 15 psi (1 Bar). These valves come in materials like brass or stainless steel, and can be either normally open or normally closed. Pipe sizes range from 3/8 - inch to 3/4 - inch.They have a wide range of applications, including dispensing, collating, vacuum holding, tank draining, and gas shutoff. Specifically, the normally open type is particularly suitable for gas venting tasks.

Product Features

• Operate at low pressures: no minimum required; up to 15 psi maximum differential.

• Normally Closed or Normally Open operation.

• Widely used for dispensing, collating, gas shutoff, vacuum holding, and tank draining applications.

• Normally Open valve well suited for venting systems.

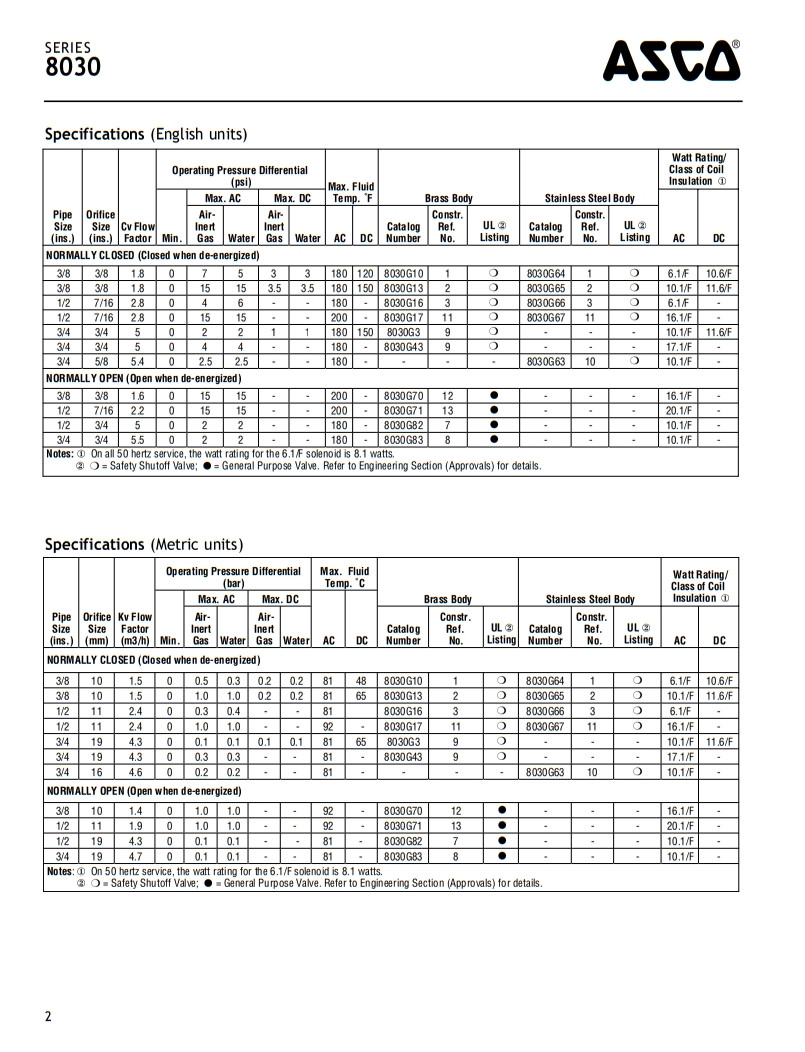

Specifications:

Valve Actuation	Solenoid
Body Material	Brass, Stainless Steel
Media	Air, Inert Gas, Natural Gas, Water
Pipe / Port Size	1/2"; 3/8"; 3/4"
Port Type	NPTF
Function	2 way - 2/2 Normally Closed, 2 way - 2/2 Normally Open
Flow	From 2.0 Cv to 6.0 Cv, From 6.0 Cv to 14.0 Cv
Voltage	24 AC, 110 AC, 120 AC, 220 AC, 230 AC, 480 AC, 6 DC, 12 DC, 24 DC, 120 DC, 240 DC 50/60
Max Differential / Max Operating Pressure	Vacuum to 150 PSIG
Operating Environment	Indoor, Outdoor
Standards / Regulations	CSA, FM, UL

Product Details

8030 Series ASCO 2 Position 2 Way Solenoid Valve Normally Open Version For Gas Venting
