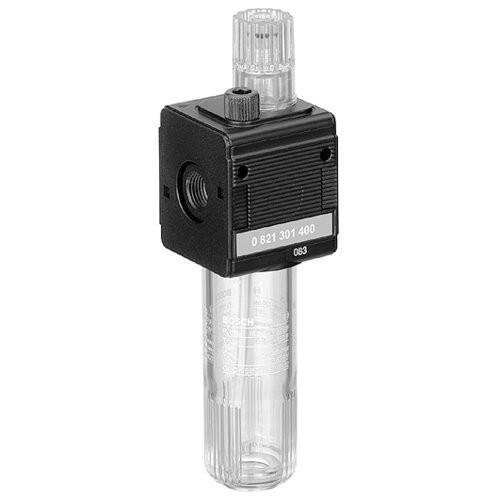

AVENTICS Standard Oil Mist Lubricator Series NL4 LBS 0821301500

Brand Name : AVENTICS

Model Number : Series NL4 – LBS – 0821301500

MOQ : 1

Price : $255

Payment Terms : T/T

Supply Ability : 100

Packaging Details : Packaging and delivery Selling Units: Single item Single package size: 6X6X6 cm Single gross weight: 1.000 kg

Battery Life : Up to 2 hours

Type : Robot Vacuum

Smartphone App Control : Yes

Navigation Technology : Laser Mapping

Cleaning Modes : Auto, Spot, Edge, and Manual

Warranty : 1 year

Remote Control : Yes

Power Source : Rechargeable Battery

Suction Power : 2000 Pa

Weight : 5 pounds

Contact Now

Product Description:

The AVENTICS Series NL maintenance units are suitable for all areas: as individual components or as assembled maintenance units, for centralized or decentralized compressed air preparation, in compact or powerful versions, for use in high or low temperatures. This line offers a complete, customizable compressed air preparation technology. It includes an option to combine every component in the Series to achieve the desired function, making it possible to adjust the components precisely to the application requirements.AVENTICS Standard oil – mist lubricator, Series NL4 – LBS – 0821301500

Product furtures:

  • Easy-to-assemble
  • Manual, semi-automatic or fully-automatic condensate drains available
  • Transparent reservoirs available
  • Bayonet catches ensure easy maintenance

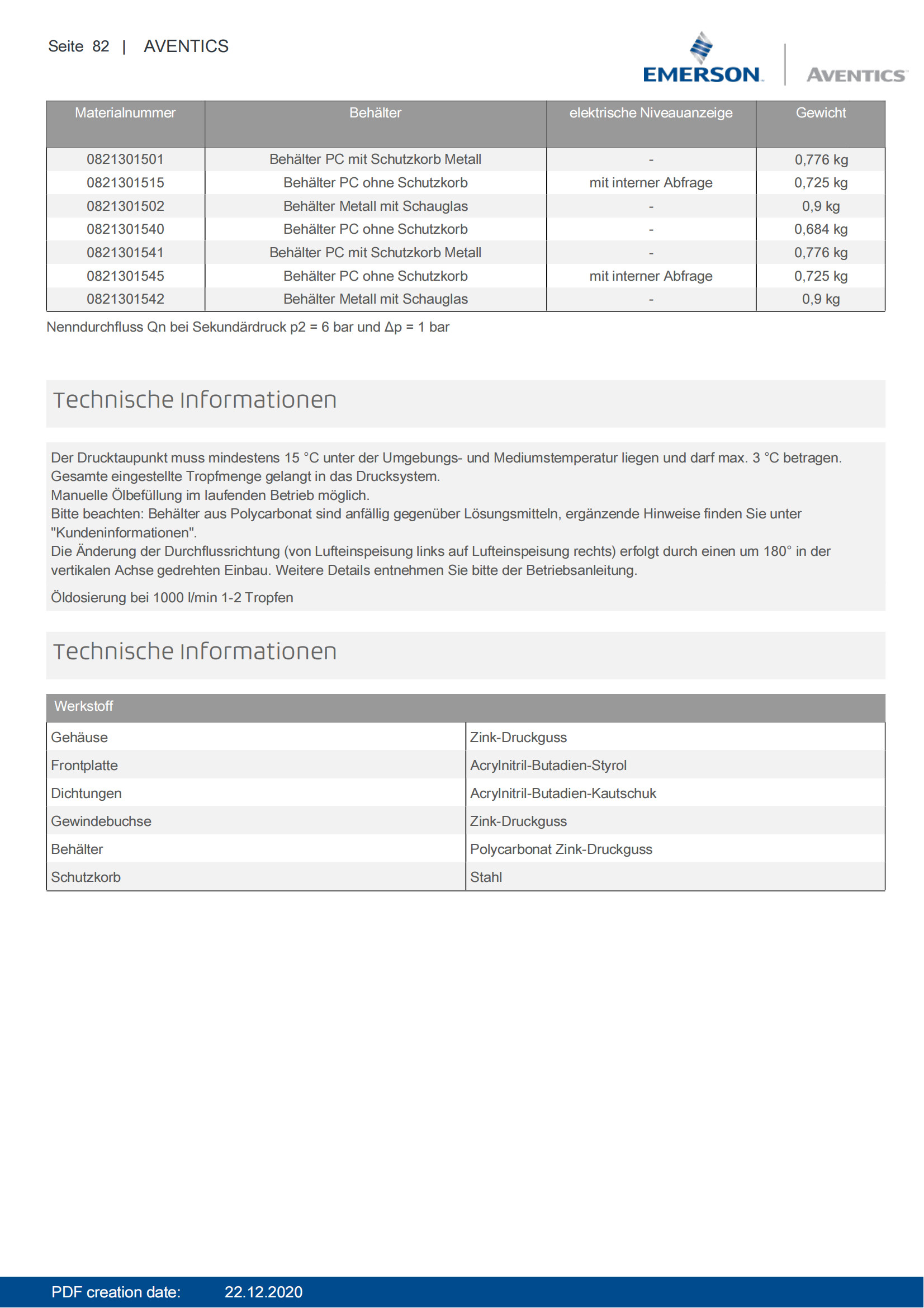

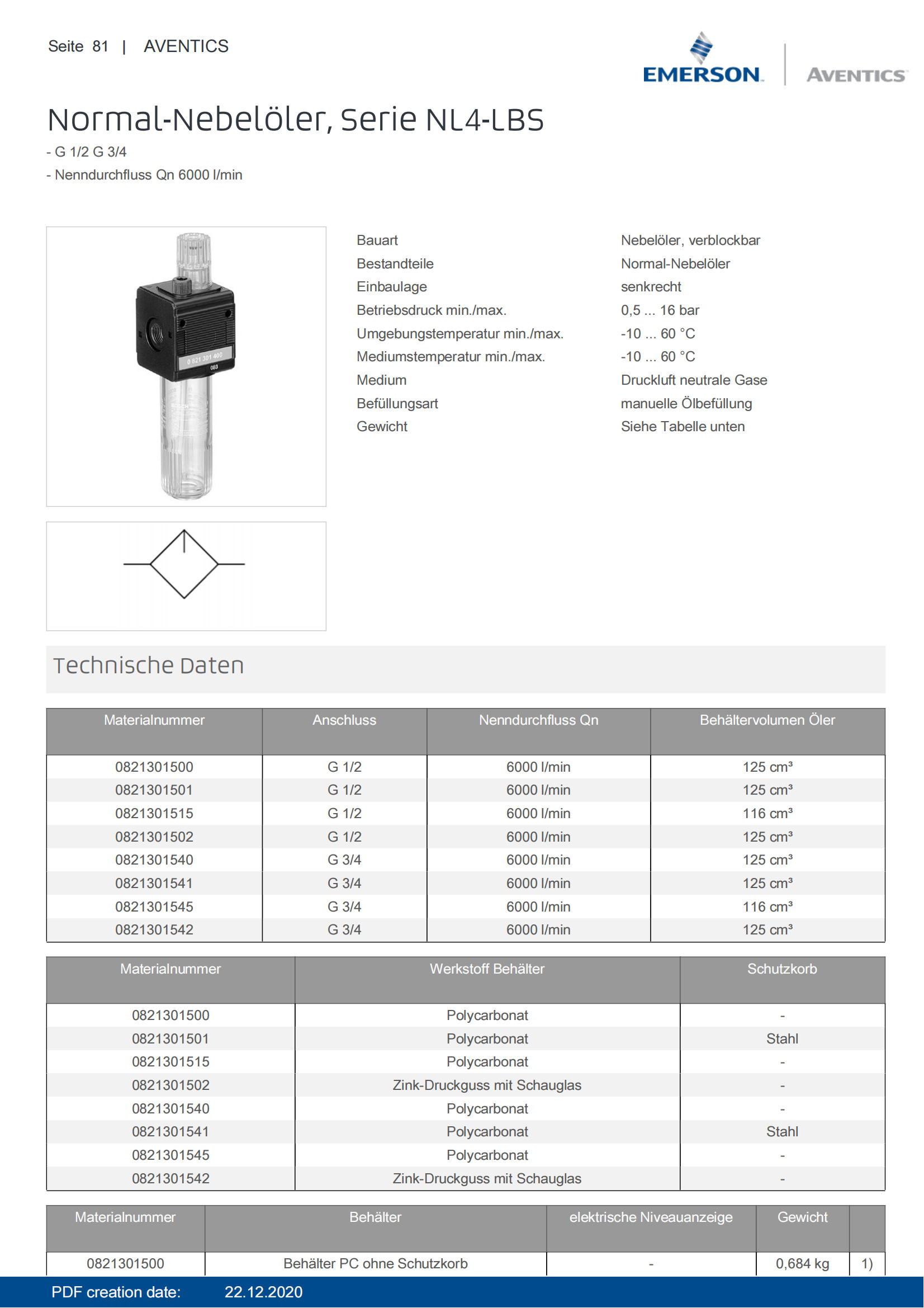

DESCRIPTION:

Parts Standard oil-mist lubricator
Type of filling Manual oil filling
Housing Die cast zinc
Reservoir Polycarbonate
Sealing material Acrylonitrile butadiene rubber
suitable for ATEX
Nominal flow Qn 6000 l/min
Compressed air connection G 1/2
Version Oil-mist lubricator, Can be assembled into blocks
Parts Standard oil-mist lubricator
Mounting orientation vertical
Working pressure min./max. 0,5 … 16 bar
Ambient temperature min./max. -10 … 60 °C
Medium temperature min./max. -10 … 60 °C
Medium Compressed air Neutral gases
Type of filling Manual oil filling
Weight See table
The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C .
The entire preset drip quantity enters the pressure system.
Manual oil filling possible during operation.
Note: Polycarbonate reservoirs are susceptible to solvents, supplementary information can be found at “Customer information”.
A change in the flow direction (from air supply on the left to air supply on the right) occurs by rotating installation by 180° about the vertical axis. Please see the operating instructions for further details.
Oil dosing at 1000 l/min 1-2 drops
Material
Housing Die cast zinc
Front plate Acrylonitrile butadiene styrene
Seals Acrylonitrile butadiene rubber
Threaded bushing Die cast zinc
Reservoir Polycarbonate Die cast zinc
Protective guard Steel
