AVENTICS Series 581 Complies Spool Valve Robust Design ISO 5599 - 1 Standard

  • 1
  • 2

Brand Name : AVENTICS

Model Number : AVENTICS Series BDC

MOQ : 1

Price : $255

Payment Terms : T/T

Supply Ability : 100

Packaging Details : Packaging and delivery Selling Units: Single item Single package size: 6X6X6 cm Single gross weight: 1.000 kg

Flow Direction : Bi-directional

Application : HVAC systems

Voltage : 24V

Material : Brass

Max Temperature : 200°F

Size : 1/2 inch

Max Pressure : 200 psi

Seal Material : NBR

Type : Direct-acting

Operating Mode : Normally Closed

Power Consumption : 5W

Connection Type : NPT

Media : Water

Contact Now

AVENTICS Series 581 Complies With The Valve Offers All Valve Functions, Integrated Throttle Valves, Various Pilot Coils, And A Comprehensive Range Of Accessories

Product Description:,

The AVENTICS Series 581 is a top - notch product that strictly adheres to the valve standard ISO 5599 - 1. Its high modularity level is a major highlight. This series encompasses all essential valve functions, with integrated throttle valves for precise flow control. It comes with a variety of pilot coils, catering to different application requirements. Moreover, it offers an extensive range of accessories, providing users with the flexibility to customize their setups. Whether for industrial automation or other complex systems, the AVENTICS Series 581 is a reliable choice, designed to meet and exceed industry expectations.

Product Features:

  • Standardized valve system
  • ISO size 1 to 4 available
  • Robust design
  • Integrated exhaust throttles
  • Numerous voltage ranges
  • Pressure range up to 16 bar possible
  • CNOMO interface
  • Small dimensions
  • Fast shifting times
  • Easy and flexible custom specific configurations via online configurator

DESCRIPTION

Standardization ISO 5599-1
Frame size ISO 4
Switching principle 5/3
Version Spool valve
Housing Aluminum
Sealing material Acrylonitrile butadiene rubber
Protection class IP65
Port size EN 175301-803, form A
Type Plug
Nominal flow Qn 5000 l/min
Compressed air connection input Base plate ISO 5599-1
Compressed air connection output Base plate ISO 5599-1
Operational voltage AC at 50 Hz 42 V
DC operating voltage 24 V
Version Spool valve
Sealing principle Soft sealing
Blocking principle Single base plate principle
Connection type Plate connection
Standards ISO 5599-1, ISO 4
Working pressure min./max. See table
Control pressure min./max. 3 … 16 bar
Ambient temperature min./max. -15 … 50 °C
Medium temperature min./max. -15 … 50 °C
Medium Compressed air
Max. particle size 50 µm
Oil content of compressed air 0 … 5 mg/m³
Nominal flow Qn 5000 l/min
Flow conductance C 15,5 l/(s*bar)
Protection class with connection IP65
Duty cycle 100 %
Typ. switch-on time 26 ms
Typ. switch-off time 68 ms
Mounting screw with hexagon socket
Mounting screw tightening torque 10 Nm
Weight 1,57 kg

Product Details:

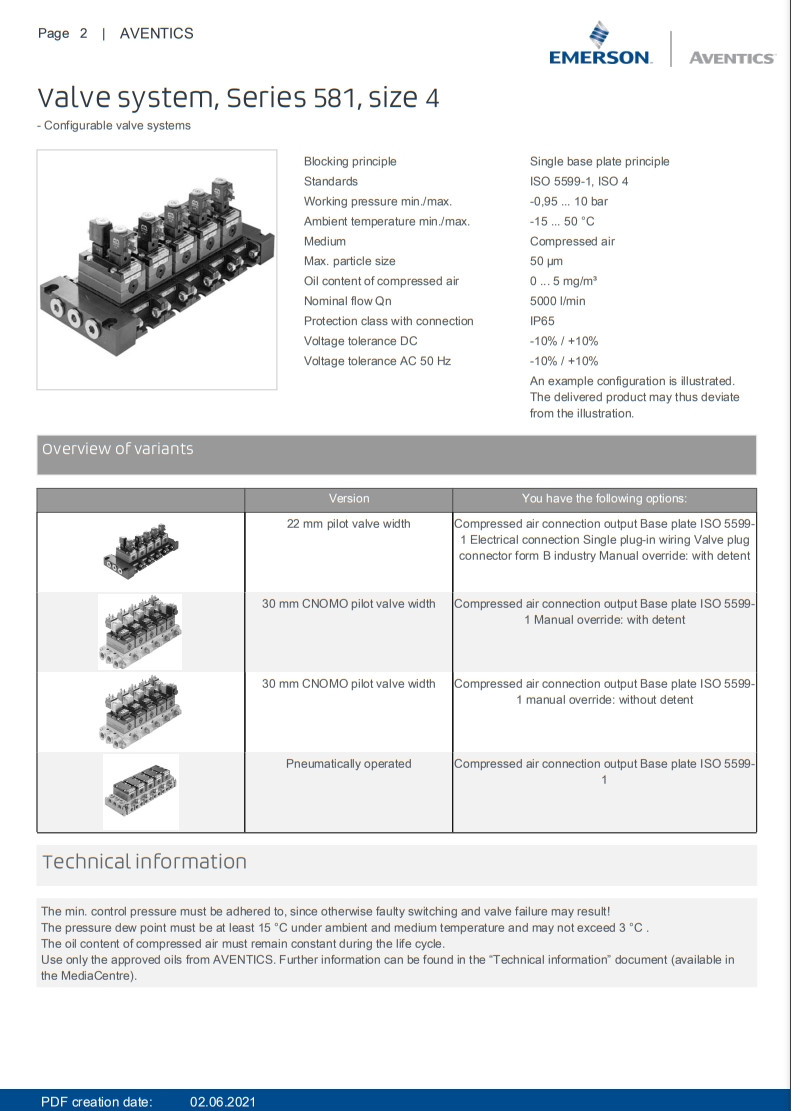

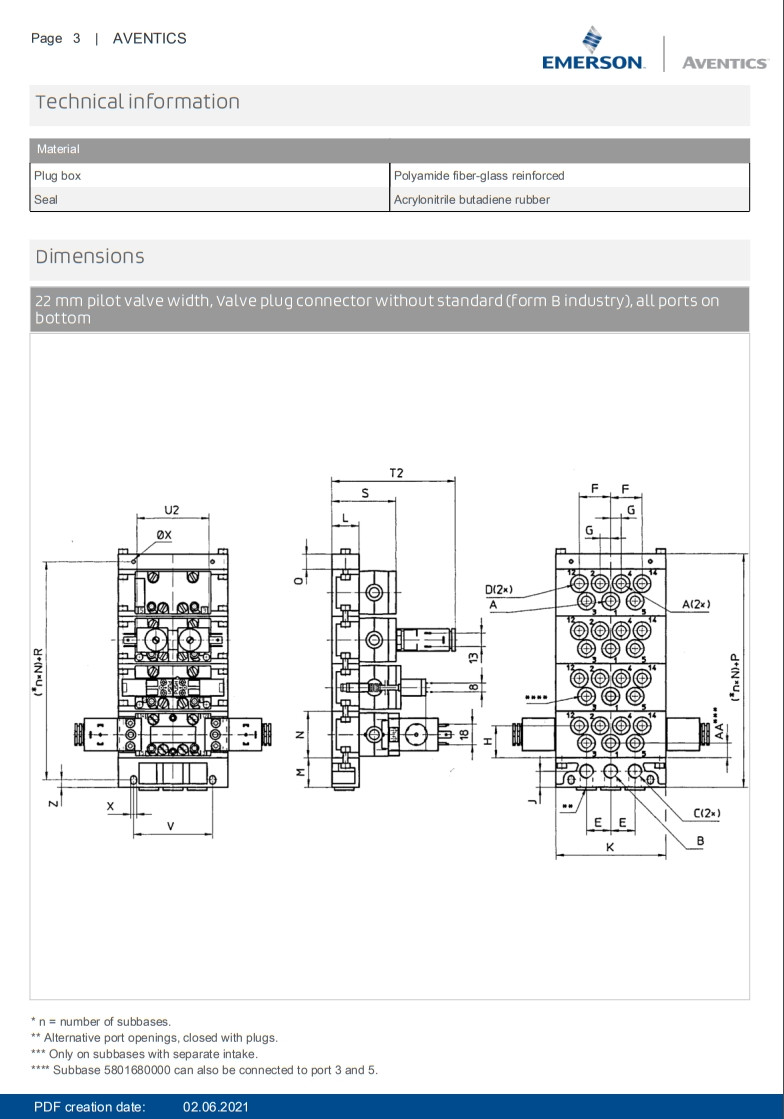

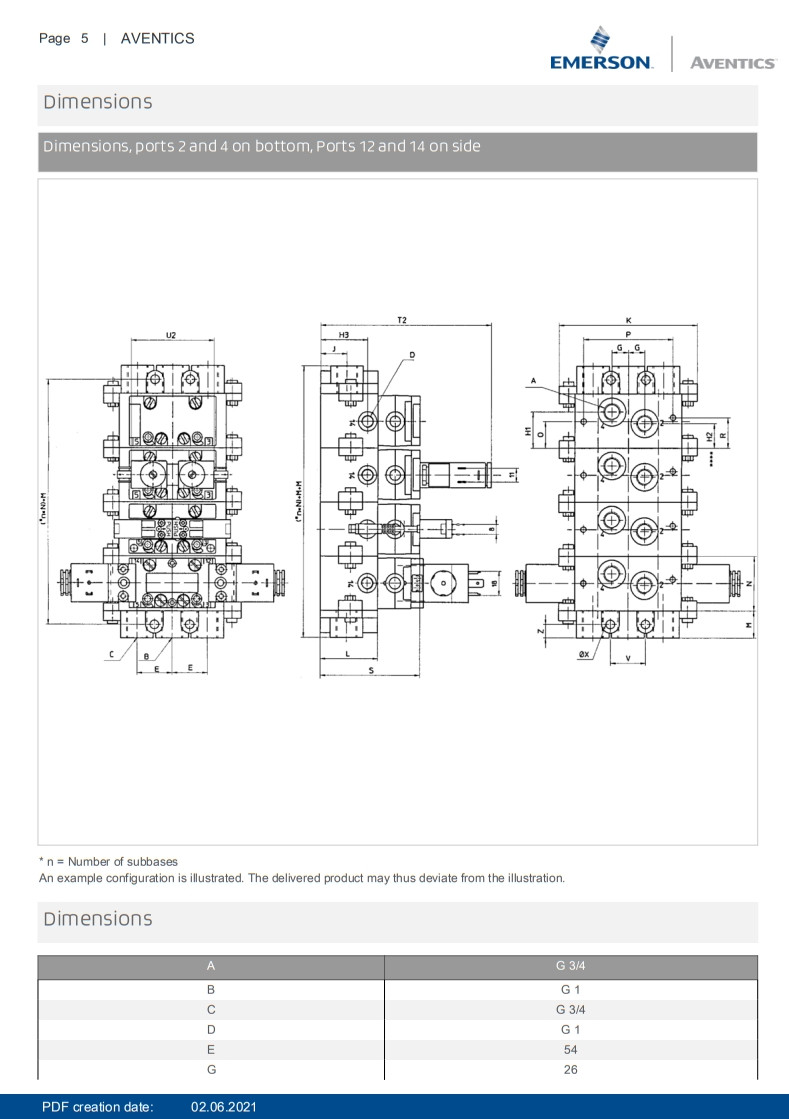

AVENTICS Series 581 Complies Spool Valve Robust Design ISO 5599 - 1 StandardAVENTICS Series 581 Complies Spool Valve Robust Design ISO 5599 - 1 StandardAVENTICS Series 581 Complies Spool Valve Robust Design ISO 5599 - 1 Standard
