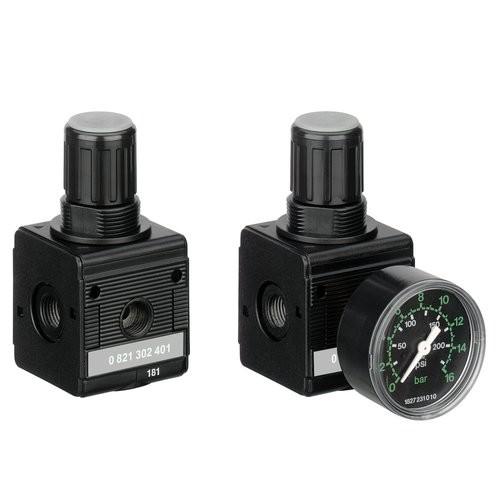

AVENTICS Die cast zinc Housing Pressure Regulator Series NL4 – RGS – 0821302505 G 1/2 G 3/4

Brand Name : AVENTICS

Model Number : Series NL4 – RGS – 0821302505

MOQ : 1

Price : $255

Payment Terms : T/T

Supply Ability : 100

Packaging Details : Packaging and delivery Selling Units: Single item Single package size: 6X6X6 cm Single gross weight: 1.000 kg

Contact Now

Product Description:

The AVENTICS Series NL maintenance units are incredibly adaptable, fitting seamlessly into any compressed air setup. Whether you need individual components or a fully - assembled solution, for centralized or decentralized systems, they're the perfect choice. Available in compact and powerful models, they operate efficiently in both high and low temperatures. The AVENTICS Pressure regulator, Series NL4 – RGS – 0821302505, is a vital part of this series. It offers precise pressure control, ensuring that your compressed air system maintains optimal performance. Thanks to the Series NL's unique ability to combine components, you can customize your setup to match your specific application requirements. This makes AVENTICS a go - to for reliable, tailored compressed air preparation solutions.

Product Features:

  • - G 1/2 G 3/4
  • - Qn = 9500 l/min
  • - Standard-Druckregler
  • - Betätigung mechanisch

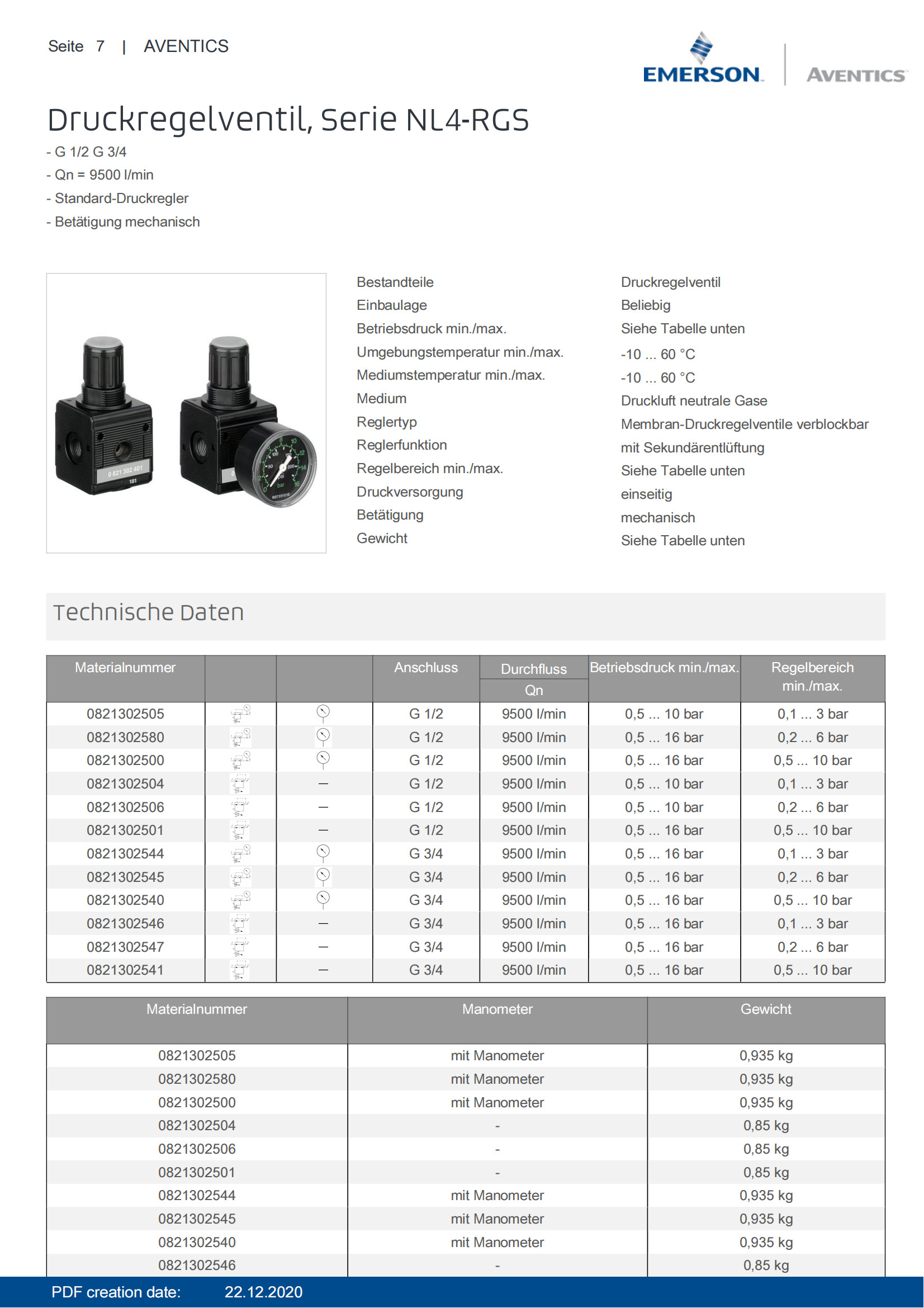

DESCRIPTION:

Activation Mechanical
Parts Pressure regulator
Relieving exhaust with relieving air exhaust
Pressure gauge with pressure gauge
Housing Die cast zinc
Sealing material Acrylonitrile butadiene rubber
suitable for ATEX
Nominal flow Qn 9500 l/min
Compressed air connection G 1/2
Parts Pressure regulator
Mounting orientation Any
Certificates suitable for ATEX
Working pressure min./max. See table
Ambient temperature min./max. -10 … 60 °C
Medium temperature min./max. -10 … 60 °C
Medium Compressed air Neutral gases
Regulator type Diaphragm-type pressure regulator Can be assembled into blocks
Regulator function with relieving air exhaust
Adjustment range min./max. See table
Pressure supply single
Activation Mechanical
Weight See table

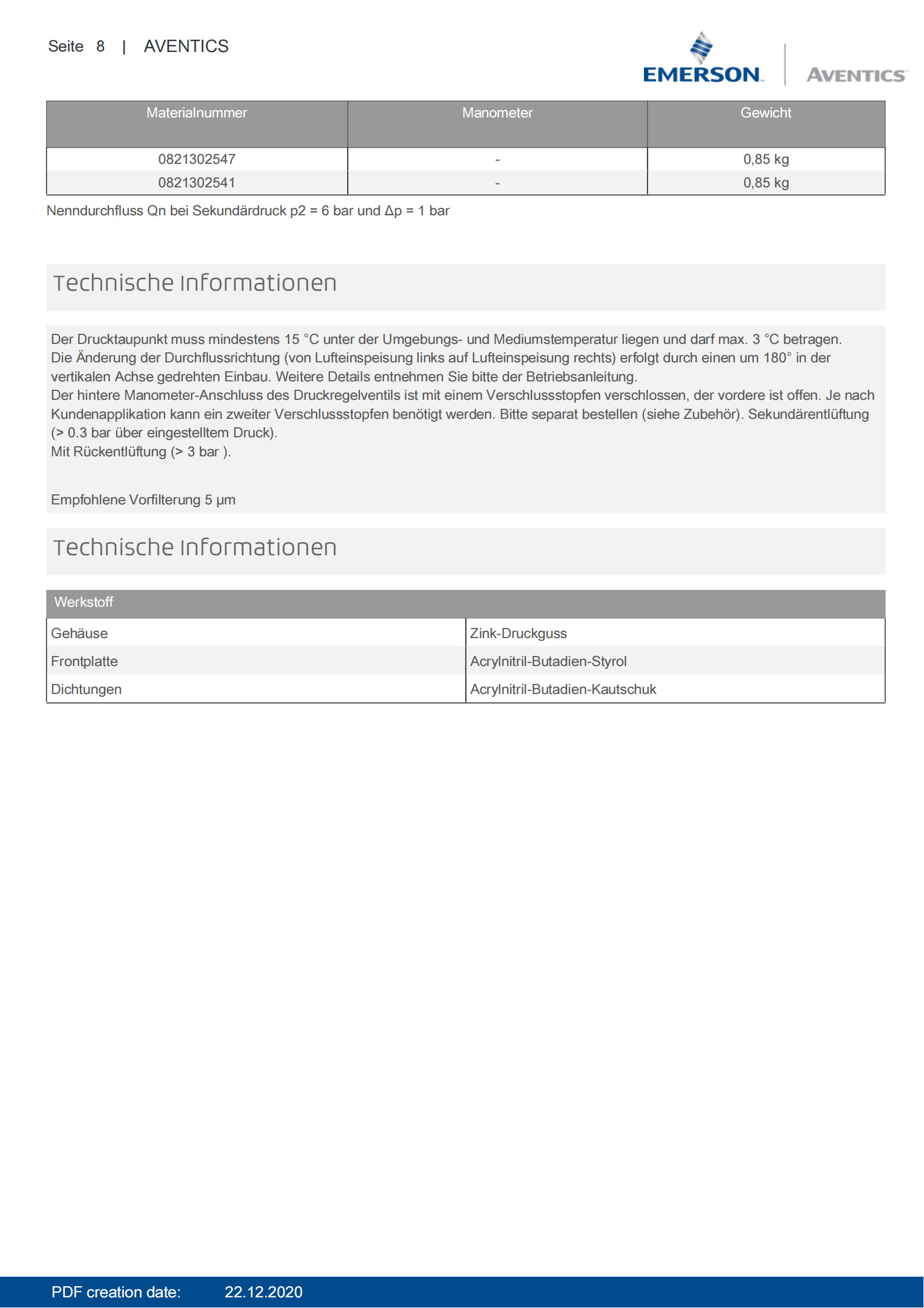

The pressure dew point must be at least 15 °C under ambient and medium temperature and may not exceed 3 °C .
Suitable for use in Ex zones 1, 2, 21, 22.
A change in the flow direction (from air supply on the left to air supply on the right) occurs by rotating installation by 180° about the vertical axis. Please see the operating instructions for further details.
The rear pressure gauge connection on the pressure regulator is closed with a blanking plug, the front connection is open. Depending on the customer application, a second blanking plug may be necessary. Please order separately (see accessories).
Relieving exhaust (? 0.3 bar over set pressure).
With rear exhaust (> 3 bar ).
Recommended pre-filtering 5 µm
Material
Housing Die cast zinc
Front plate Acrylonitrile butadiene styrene
Seals Acrylonitrile butadiene rubber

Product Details:

AVENTICS Die cast zinc Housing Pressure Regulator Series NL4 – RGS – 0821302505 G 1/2 G 3/4AVENTICS Die cast zinc Housing Pressure Regulator Series NL4 – RGS – 0821302505 G 1/2 G 3/4AVENTICS Die cast zinc Housing Pressure Regulator Series NL4 – RGS – 0821302505 G 1/2 G 3/4
